Materials：Corrugated paper,removable Sticker,flex banner,PVC colorfilm,decorative paper,thin aluminum roll,wood paper etc.
Accuracy：Basic Definition 1200dpi, single-pass
Capacity：Up to 150m/min
Ink type： UV ink
PDF下載
視頻介紹
- Basic accuracy: 1200dpi, can be upgraded to 1800dpi
- Printing speed: the fastest 150m/min, the daily output can reach 200,000 ㎡
- Application: digital pre-printing of Corrugated paper,removable Sticker,flex banner,PVC colorfilm,decorative paper,thin aluminum roll,wood paper and other coiled materials.

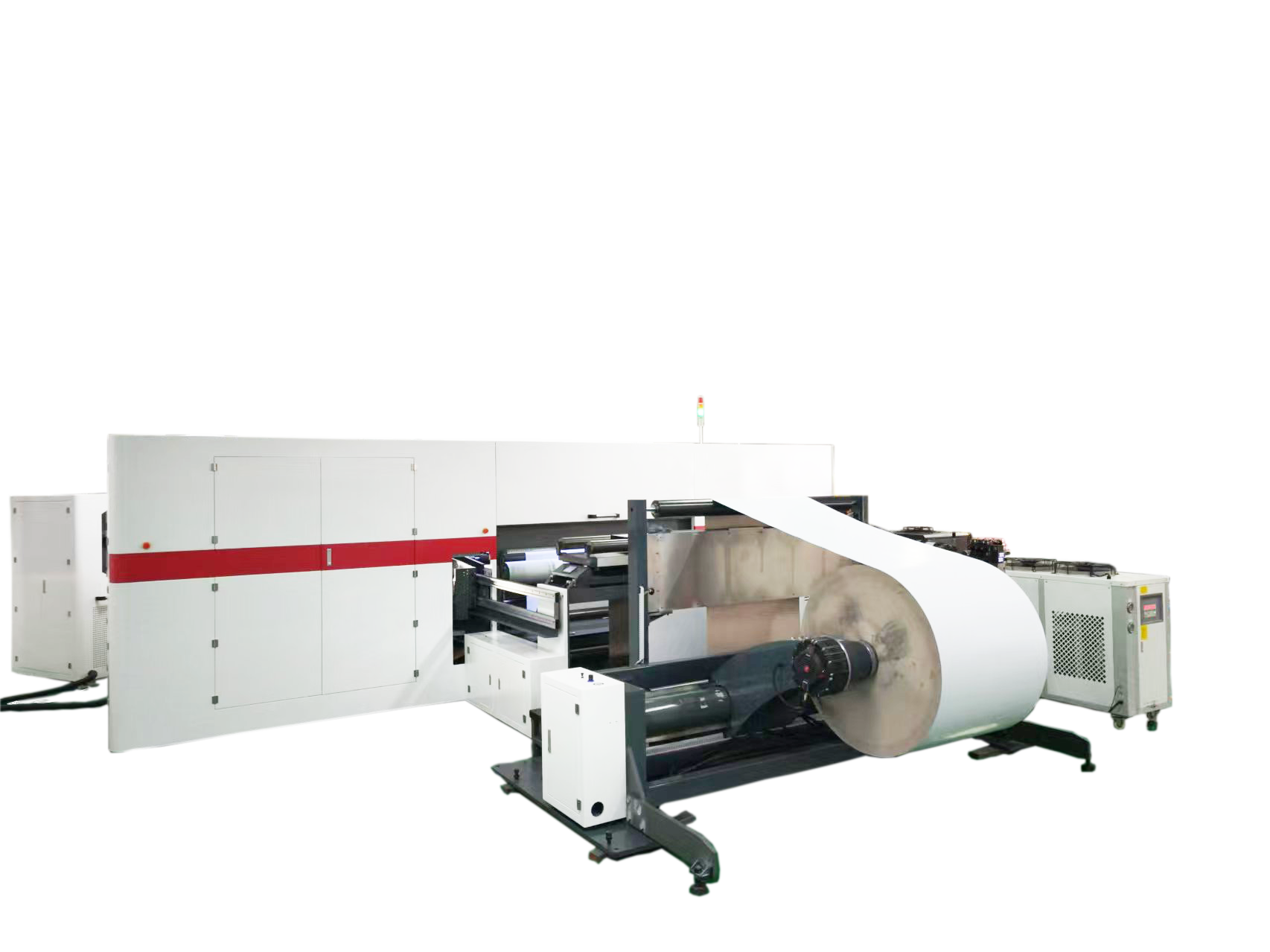

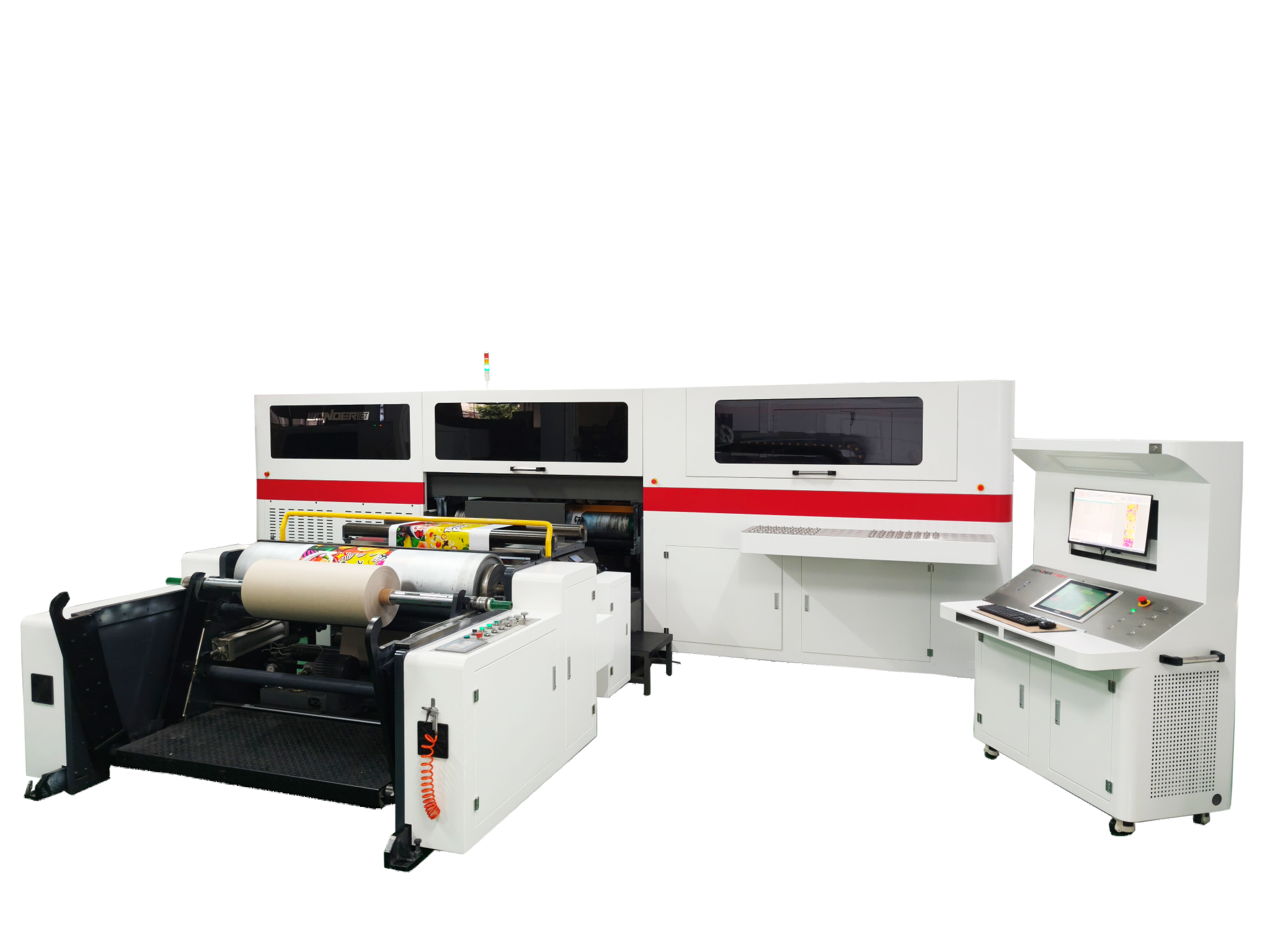

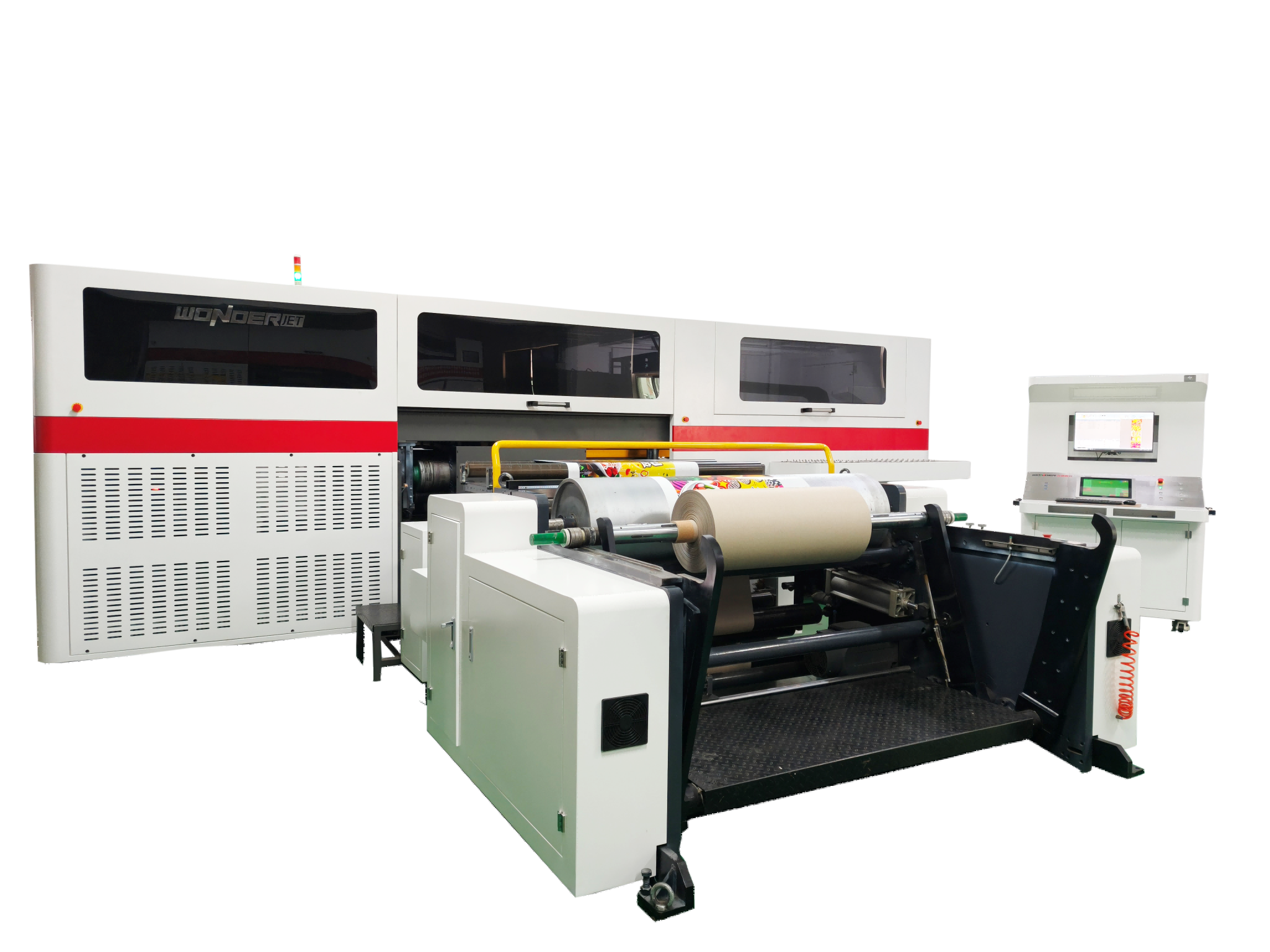

- WDRUV200++ Single Pass high speed roll-to-roll digital pre-printer, which can achieve printing quality beyond flexo printing and comparable to offset printing.
Meanwhile, the application of variable data technology in the pre-printing line of Wonder has realized the pre-printing production method of "centralized printing and dispersing into boxes".
It is more advantageous than postprinting. The online production speed is fast, no downtime, seamless order change, 24-hour continuous operation, smooth roll paper without loss,
The production quality and efficiency are greatly improved, and the time and loss costs are reduced.

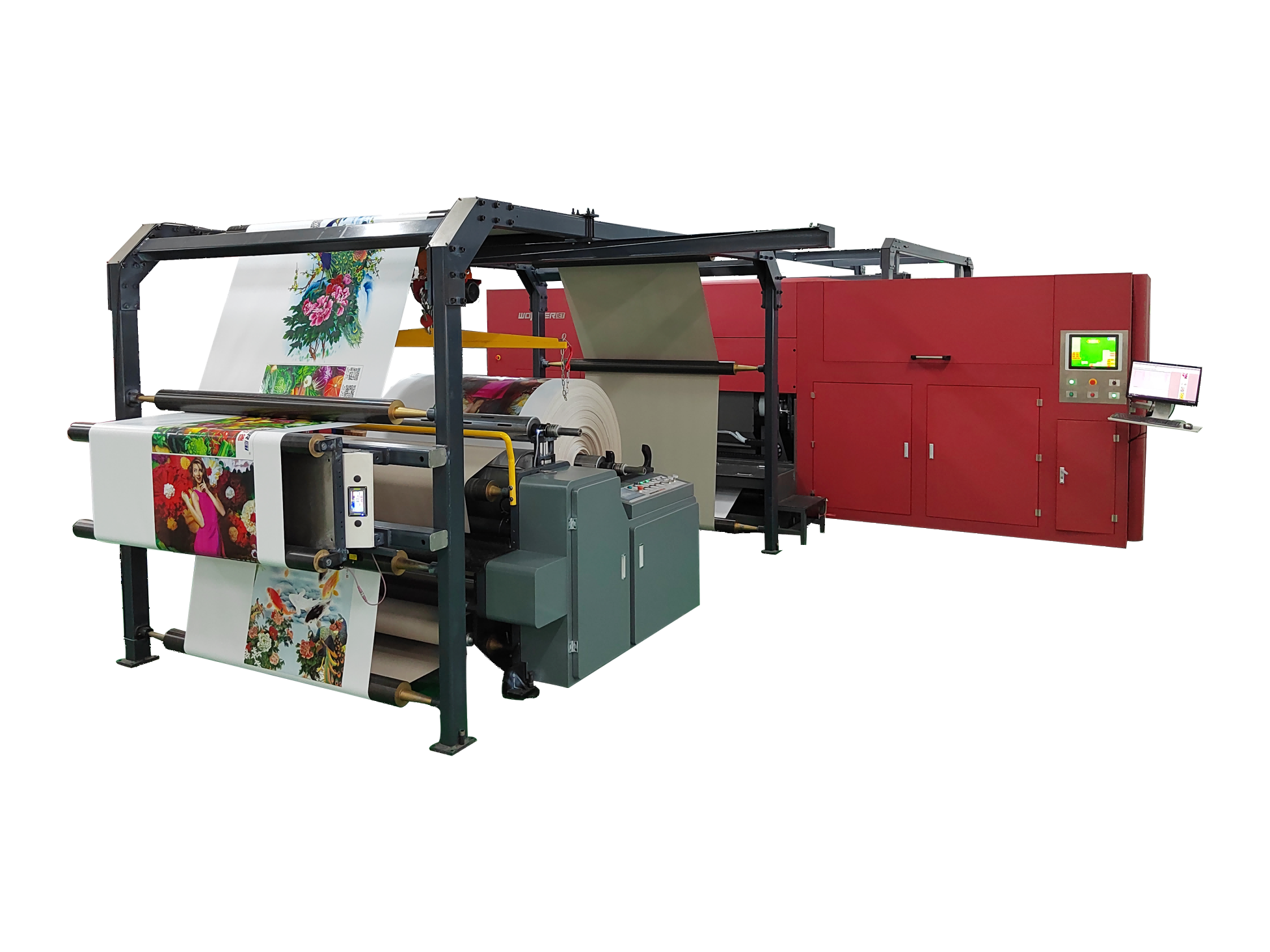

Wonder's breakthrough innovation in the field of decorative paper digital printing
No plate makin, no plate roller, make all kinds of patterns and colors as demand
No complex craftsmanship, a perfect alternative to gravure and flexo printing
Reliable negative pressure and ink supply system can ensure long-term stable output of the machineConvenient operation of feeding/collecting and correcting system, labor saving
Article NO. | WDUV200++ Industrial Single Pass Roll to Roll Digital Pre-printing Machine |
Printhead | Piezoelectric high-procision printhead |
Ink type | Special UV ink |
Color model | Cyan,Magenta,Yellow,Black (,White is optional) |
Medium distance | 2mm-4mm |
Printing resolution | ≥1200*150dpi ,based accuracy can be ordered to 1800dpi |
Printing efficiency | 1200*150dpi, Max 150m/min; 1200*300dpi, Max 84m/min; |
Material width | 800mm - 2500mm can be ordered |
Printing format | 800mm - 2500mm |
Collecting size | Max ΦD1600mm |
Collecting weight | Max 1800KGS |
Material thickness | 0.2mm - 0.6mm |
Dry mode | Connecting with drying channel |
Working environment | 15oC-32oC Indoor,Humidity 40%-70% |
Ink supply | Automatic ink supply |
Collecting mode | Auto roll to roll collecting system |
Operate system | Professional RIP system,professional printing system,Win10 system with 64 bit operating system or above |
Rated power | About 30 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H 11500*6850*2800(mm) |
Weight | 21000KGS |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
