Materials：all kinds of corrugated paperboard(kraft and bleeched kraft、honey comb panel）
Accuracy：Basic Definition 600dpi, single-pass
Capacity：Up to 108m/min
PDF下載
視頻介紹

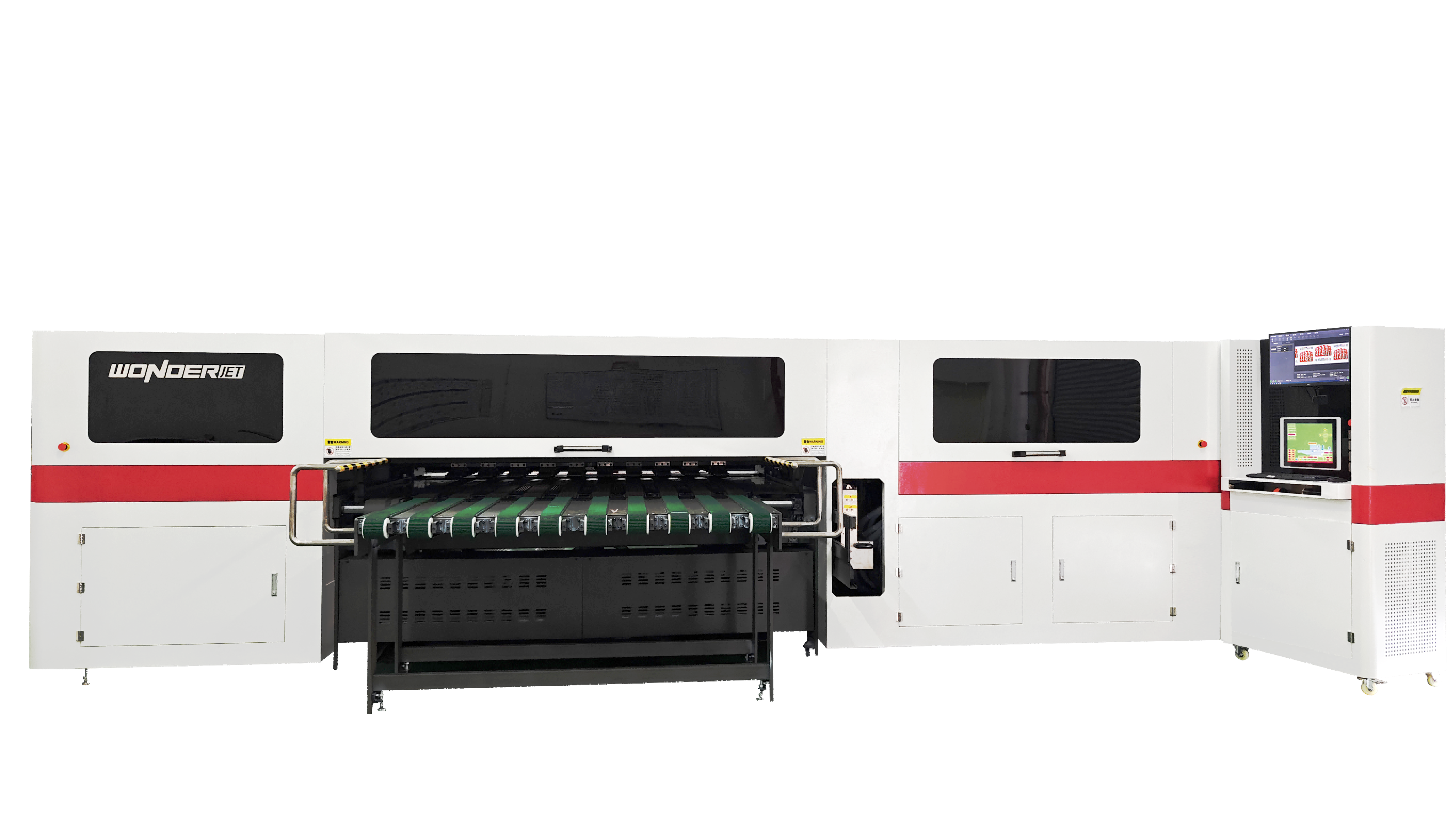

WD200+ use high speed inkjet technology, environmental water-based ink.Higher precision and higher production speed, max can be 1.8m/s with 600*200dpi,actual capacity is 2400~7200 per hour.
Features
- Using industrial-grade micro-piezoelectric high-precision inkjet heads, users can easily achieve high-speed printing, accurate calibration and high-quality printing images;
- Professional software can realize ERP interconnection, queue multi-task printing function and accurate generation of variable data;
- It can realize linked line production, and the ultra-high start-up rate that traditional printing machines cannot match. It can support up to 8-color printing, and accurately complete transitional color, gradient color and color mixing effects.
More application options to meet different customer needs:
* Variable data: efficient orders changing, multiple orders can be printed continuously for 24 hours.
* Connect with drying system and varnish coating system, printing effect can keep shiny color and waterproof 2 in 1 by lower production cost.
* Connect with AUTO HIGH SPEED DOUBLE SERVO SLOTTING SYSTEM.
* Fully automatic non-stop collecting and stacking system, saving labor.
Article NO. | WD200+ |
Printhead | Industrial-grade printhead |
Ink type | Special water-based dye ink, special water-based pigment ink |
Color model | Cyan,Magenta,Yellow,Black |
Medium distance | 2mm-4mm |
Printing resolution | ≥600*200 dpi |
Printing efficiency | 600*200dpi, max speed1.8m/s; |
Material format | Below 2200mm*2400mm under auto feeding |
Printing format | 800mm ~2500mm |
Drying speed | Liner-board can be dry once print out, able to print on semi coated board if connect with drying system(optional) |
Work environment | 20oC-25oC Indoor，Humidity 50%-70% |
Ink supply | Automatic ink supply |
Feeding mode | Automatic feeding |
Material thickness | 1.2mm-20mm |
Operate system | Professional RIP system,professional printing system,Win10/11 system with 64 bit operating system or above |
Power supply | About 22 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H：6645*5685*2453(mm)(具體以實際訂單為準） |
Weight | 5500KGS |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
